제품 상세 정보:
|
| 제품명: | 밸브 고무 | 모델: | F-1300 감탕뽐프 부분 |
|---|---|---|---|
| 재료: | 폴리우레탄 | 산업: | 오일 시추 감탕뽐프 |
| 상태: | 아주 새로운 | 이점: | 고품질 |

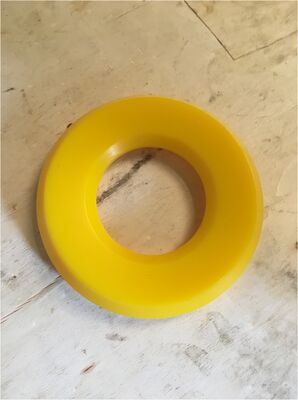

Mud Pump Parts Valve Rubber For BOMCO F-1300 Mud Pump API Standard
Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd is a professional supplier of oil drilling machinery and equipment with 6 years experience.
We have obtained the ISO9001 quality certificate.
Our advantage is to provide high quality products and the best service for customer. We have a professional team to ensure fast response, delivery in strict accordance with the delivery date, strictly control product quality, ensure the interests of customers.
Our products have been exported to Russia, Kazakhstan, Kuwait, UAE, Iraq, Indonesia, Malaysia, Brazil, France, Canada, and some other countries and regions.
Our products have been well received among customers and get long-term trust.
Product description
Valve PU rubber is used in oil drilling mud pumps and cementing pistons. Its purpose is to seal and cushion.
Made of polyurethane material, it has super advantages such as oil resistance, corrosion resistance and wear resistance. Field working
temperature -35ºC-100ºC, working pressure 40MPa.
Polyurethane has a longer service life than rubber, and is widely used in oil field fracturing trucks, oil field car washes, cement trucks, piston
pumps, mud pumps and other oil equipment consumables.
Oil drilling pump seal ring for mud pump
Description:
| Description | Temperature Range | Pump Pressure | Abrasion | Drilling Fluid | Application For |
| NBR | -40~100 °C | 5000PSI(35Mpa) | Not Bad | Water base | Seals, Piston Rubber, Valve Rubber, Bladder |
| -40~210 °F | |||||
| polyurethane | -40~85 °C | 5000PSI(35Mpa) | Excellent | Water base & Oil base | Seals, Piston Rubber, Valve Rubber, |
| -40~185 °F | |||||
| HNBR | -50~150 °C | 7500PSI(52Mpa) | Good | Water base & Oil base | Piston Rubber, Valve Rubber, Bladder |
| -58~300 °F | |||||
| Viton | -15~250 °C | 7500PSI(52Mpa) | Not Bad | Oil base | Seals |
Mud Pump Part List
| Item | Product Description | Mud Pump Model | Part No. |
| 1 | Hydraulic cylinder assembly | F-1300/F-1600 | AH130102050100 |
| 2 | Cylinder head flange | F-1300/F-1600 | AH1301010502 |
| 3 | Cylinder head | F-1300/F-1600 | AH1301010503 |
| 4 | Plug board assembly | F-1300/F-1600 | AH130101050400 |
| 5 | Valve rod guides(lower) | F-1300/F-1600 | AH130101050500 |
| 6 | Cylinder head plug | F-1300/F-1600 | AH130101050600 |
| 7 | Positioning plate | F-1300/F-1600 | AH1301010507 |
| 8 | Cylinder head gasket | F-1300/F-1600 | AH1301010508 |
| 9 | Cylinder liner lock ring | F-1300/F-1600 | AH1301010518 |
| 10 | Bi-metal cylinder liner | F-1300/F-1600 | AH130102051200 |
| 11 | Clamp assembly | F-1300/F-1600 | AH130102050600 |
| 12 | Elbow NPT3/8-M22X1.5 | F-1300/F-1600 | AH1301020507 |
| 13 | Cylinder end cover | F-1300/F-1600 | AH1301010520 |
product description
1. Rubber products are suitable for oil-based and water-based drilling mud.
Including: seals, piston rubber, valve core, air bag, etc.
2. Piston rubber and valve rubber are the main components of the hydraulic end system of the mud pump.
At the same time, it is one of the most used wearing parts.
3. Piston rubber and valve rubber are vulcanized rubber products.
Common piston rubber materials include nitrile rubber and acrylate rubber.
Function
1 Increase the contact area of the screw with the machine.
2. When the trampoline is excluded, the unloading screw damages the surface of the machine.
It must be a trampoline with a flat pad close to the machine surface,
Spring washer between flat washer and nut.
