제품 상세 정보:
|
| 제품명: | 진흙 펌프 피스톤 | 크기: | 6인치 |
|---|---|---|---|
| 재료: | NBR | 압력: | 7500Psi |
| 산업: | 오일 시추 감탕뽐프 | 포트: | 광저우 |

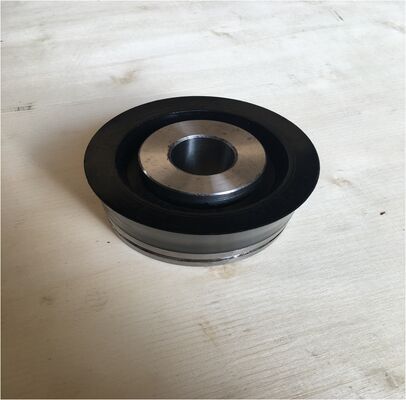

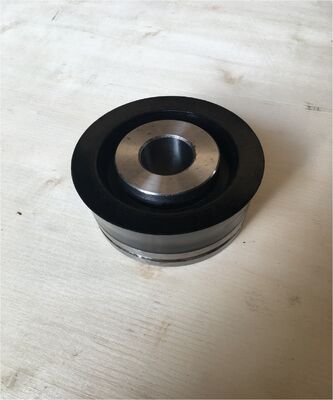

Mud Pump Piston Assembly 6 Inch For F-800 Mud Pump Parts API 7K
Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd is a professional supplier of oil drilling machinery and equipment with 6 years experience.
We have obtained the ISO9001 quality certificate.
Our advantage is to provide high quality products and the best service for customer. We have a professional team to ensure fast response, delivery in strict accordance with the delivery date, strictly control product quality, ensure the interests of customers.
Our products have been exported to Russia, Kazakhstan, Kuwait, UAE, Iraq, Indonesia, Malaysia, Brazil, France, Canada, and some other countries and regions.
Our products have been well received among customers and get long-term trust.
Product Feature
* USA Imported Polyurethane Technology
* World Leading HIGH PRESSURE Technology
* Bonded Flex Lip Type, Dual Durometer
* 7500 Psi High Pressure & High Abrasion Resistance
* Extremely Long & Reliable Service Life
* Chinese Dual Duro & USA Dual Duro Polyurethane for Options
* Fully interchangeable with Green Duo & world major piston types
Mud Pump Parts List
| Item | Product Description | Part No. | Quantity |
| 1 | liner size 5-1/2" | 05-466-550(MK-0259-54HP) | 12 |
| 2 | liner size 6" | 05-466-600(MK-0259-54HP) | 18 |
| 3 | seat valve(baker full open valve seat) | 1561440 | 12 |
| 4 | valve complete assy to use w/1561440 seat | 1560985 | 12 |
| 5 | valve spring | 8201684 | 15 |
| 6 | clamp,piston rod assy | 1292085 | 20 |
| 7 | sub rod | 1292146 | 3 |
| 8 | gasket cover | 1275158 | 15 |
| 9 | plate wear | 1292266 | 4 |
| 10 | gasket,main frame cover(12-P-160 mud pump) | 1292095 | 10 |
| 11 | retainer plug | 1292174 | 10 |
| 12 | gasket oil wiper retainer | 1292227 | 10 |
| 13 | seal pinion bearing oil | YS-10004 | 6 |
| 14 | insert valve guide | 1292141 | 5 |
| 15 | seal wear plate | 1292257 | 20 |
| 16 | seal suction manifold | 1540851 | 20 |
| 17 | packing O-ring rectangular | 2410031-43 | 10 |
| 18 | packing O-ring rectangular | 2410031-43 | 10 |
| 19 | seal discharge spacer | 1292258 | 10 |
| 20 | strainer discharge | 1292219 | 2 |
| 21 | V-belt 8/8VF3150 | G-4740141-8 | 1 |
