제품 상세 정보:
|
| 상품 이름: | 모세관 | 재료: | 825 |
|---|---|---|---|
| 사이즈: | 1/8 내지 3/4 | 산업: | 오일 시추 |
| 애플리케이션: | 산업 | 형태: | Round.square.Rectangle |
| 강조하다: | 둥근 스테인레스 강 모세관,스테인레스 강 모세관을 꿰뚫는 오일,1/8 " 강철 모세관 코일 |
||

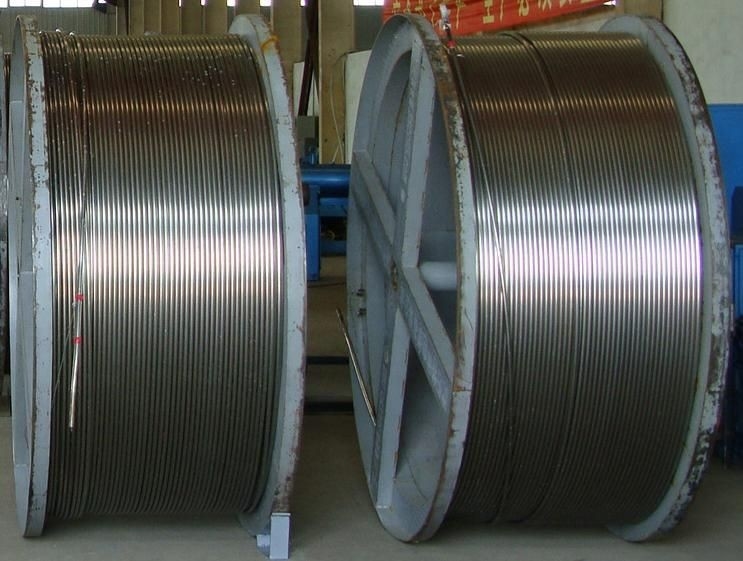

강철 모세관 튜브 소재 825 특성 1/8 "
특징
사안시 FORUS 석유 기구 설비 사에 의해 생산된 녹슬지 않는 강철 소용돌이 배선의 생산은 다음과 같습니다 :
1. 상술 : 1/8″ 재료 : 825
This product is also known as capillary. It is mainly used for downhole capillary pressure measurement of oil and gas wells, that is, the temperature and pressure sensors (also called downhole precision pressure gauges, generally nitrogen cylinders) and oil and gas well production strings are lowered into the oil and gas layers thousands of meters deep downhole, and then the The 1/8" hydraulic control line (capillary) is connected from the temperature and pressure sensor to the fluorescent screen display on the surface, so that the downhole temperature and pressure can be transmitted to the surface through the capillary, and the fluorescent screen of the surface display can read the oil and gas layer in the well. Instantaneous temperature and pressure, so as to realize real-time monitoring of downhole temperature and pressure. It can also be used for pressure control of surface safety valves and other surface valves, as well as various connection pipelines of large-scale equipment and instrumentation control systems for oil and gas field drilling and oil production.
2. 모세관 사이즈
| 상술 | 벽 두께 | 면밀도 길이 | 계산 내경 | 크로스 구역 지역 | 항복 강도 | 인장 강도 | 강관 총체하중 | 최소 시험압력 | ||||
| 특정합니다 | 최저치 | 민 생산량 스레스 | 민 인장 응력 | |||||||||
| Ｔ | tmin | 위페 | Ｄ | |||||||||
| OD | 벽 두께 | 에 | 에 | 파운드 / ft | 에 | SQIN | psi | psi | 파운드 | 파운드 | psi | |
| 1/8 | 0.125 | 0.028 | 0.028 | 0.025 | 0.04 | 0.069 | 0.0085 | 40,000 | 70,000 | 300 | 600 | 12,900 |
| 0.125 | 0.035 | 0.035 | 0.032 | 0.04 | 0.055 | 0.0099 | 40,000 | 70,000 | 400 | 700 | 15,000 | |
| 1/4 | 0.250 | 0.035 | 0.035 | 0.032 | 0.09 | 0.180 | 0.0236 | 40,000 | 70,000 | 900 | 1,700 | 8,100 |
| 0.250 | 0.049 | 0.049 | 0.044 | 0.11 | 0.152 | 0.0309 | 40,000 | 70,000 | 1,200 | 2,200 | 11,300 | |
| 0.250 | 0.065 | 0.065 | 0.059 | 0.14 | 0.120 | 0.0378 | 40,000 | 70,000 | 1,500 | 2,600 | 15,000 | |
| 3/8 | 0.375 | 0.035 | 0.035 | 0.032 | 0.14 | 0.305 | 0.0374 | 40,000 | 70,000 | 1,500 | 2,600 | 5,400 |
| 0.375 | 0.049 | 0.049 | 0.044 | 0.18 | 0.277 | 0.0502 | 40,000 | 70,000 | 2,000 | 3,500 | 7,500 | |
| 0.375 | 0.065 | 0.065 | 0.059 | 0.23 | 0.245 | 0.0633 | 40,000 | 70,000 | 2,500 | 4,400 | 10,000 | |
| 0.375 | 0.080 | 0.080 | 0.072 | 0.27 | 0.215 | 0.0741 | 40,000 | 70,000 | 3,000 | 5,200 | 12,300 | |
| 1/2 | 0.500 | 0.049 | 0.049 | 0.044 | 0.25 | 0.402 | 0.0694 | 40,000 | 70,000 | 2,800 | 4,900 | 5,600 |
| 0.500 | 0.065 | 0.065 | 0.059 | 0.32 | 0.370 | 0.0888 | 40,000 | 70,000 | 3,600 | 6,200 | 7,500 | |
| 0.500 | 0.080 | 0.080 | 0.072 | 0.38 | 0.340 | 0.1056 | 40,000 | 70,000 | 4,200 | 7,400 | 9,200 | |
| 5/8 | 0.625 | 0.049 | 0.049 | 0.044 | 0.32 | 0.527 | 0.0887 | 40,000 | 70,000 | 3,500 | 6,200 | 4,500 |
| 0.625 | 0.065 | 0.065 | 0.059 | 0.41 | 0.495 | 0.1144 | 40,000 | 70,000 | 4,600 | 8,000 | 6,000 | |
